Admin Guide > Configuration > Radio Interoperation > P25 Interoperability > DFSI Gateways
DFSI Gateways
The DFSI Gateways screen allows for the creation, editing, and deletion of P25 DFSI Gateway Groups and DFSI Gateways. Digital Fixed Station Interface (DFSI) is a P25 protocol for connecting conventional P25 base stations or repeaters to local radio communication networks. ICE supports integration with P25 base stations and repeaters through DFSI Gateways.
To open the DFSI Gateways page
*Click Settings > Radio Interoperability > P25 Interoperability > DFSI.
The DFSI Gateways page opens.
A screenshot of a black screen Description automatically generated
DFSI Gateways are encapsulated in Failover Groups. Each Group relies on an election process to determine which DFSI Gateway is active and routing data. If one Gateway fails, another takes over. For more information see Understanding Faillover / Mesh Groups.
To create a DFSI Gateway Group
1. Navigate to the Settings > Radio Interoperability > P25 Interoperability > DFSI page.
2. Click the Add '+' button in the lower right corner, and then click Create gateway server group.

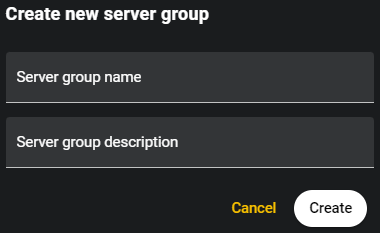

The Create new server group panel opens.
A screenshot of a group Description automatically generated
3. In Server group name, enter a name for this group.
4. In Server group description, optionally enter a description of this group.
5. Click the Create button.
The Group now appears in the DFSI Gateways list. To modify the election settings, see Understanding Faillover / Mesh Groups.
To add a DFSI Gateway
