Federating Rallypoint Groups
Use the following instructions to configure Federation between Rallypoint Server Groups. The following procedure assumes you have already created the Rallypoint Group you want to federate. For instructions, see Creating a Rallypoint Group.
In the following procedure, you will create a two-way VoIP connection with an external Rallypoint Server. To create the connection, you must obtain the required information from the ICE Administrator on the other end, or they must follow this procedure and obtain the data from you.
To federate Rallypoint Groups
1. Navigate to Settings > Rallypoints.
2. In the Rallypoint Group to federate, expand the Federated Peers menu.
3. Click Add Peer.
Add Peer button
4. Complete the following fields:

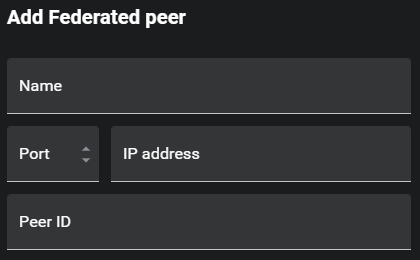

Adding a federated peer requires a Name, Port, IP Address, and Peer ID.
A. Name: Enter a name for the Federated Rallypoint. You may modify the name for this Rallypoint so that it appears on your server according to the standards of your organization.
B. Port: Enter the port supplied by the other Organization.
C. IP Address: Enter the IP Address supplied by the other Organization.
D. Peer ID: Enter the Peer ID supplied by the other Organization.
5. Click Save.
